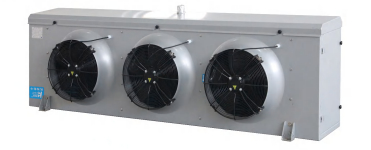

EHG series commercial ceiling-type air cooler with ethylene glycol EHG401/DL-ET

Product Overview:
EHG series commercial air cooler with ethylene glycol developed by our company is mainly designed with o12 copper tube,
which is mainly used with ethylene glycol aqueous solution as refrigerant. EHG series air cooler can meet the requirements
of cold storeat about 10eC, 0C and -18C respectively, which can meet the requirements of cold store with lowand medlum
refrigeration capacity.
1. Enclosure: High-quality galvanized steel plate sprayed with powder coating(silver gray RAL9006), with desirable
corrosion resistance, both the side plates and the outer water tray plate are designed with hinged structure, which is
convenient to operate;
2. The side sheet of the heat exchanger is made of aluminum plate, which can effectively protect thecopper tube and
reduce the weight;
3. Double drain trays design: The outer water tray is designed with edge structure with angle, which makes the water drain
smoothily without any dead angle; the inner water tray is designed with sink structure made of aluminum plate, and the
condensed water or defrost water is directly discharged into the drainage outletof the outer water tray through the inner
water tray;
4. Designed with overall stretching large arc high air tube, it has the characteristics ofexcellent air guiding effect
5. For fans with a diameter of 500, there are floor supports for easyinstallation;
6. Coll:Tube spacing 38.1x33in triangle arrangement, with high heatexchange efficlency;
7. Corrugated aluminum sheet made of hydrophilic aluminum foil, with the sheet spacing of 4.0mm and 6.omm to meet the
requirements of different temperatures and humidity;
8.Fan: High-powerexternal rotorfan,operating temperature:-30°c~60"C; fan specifications:q350,q$400,a500,product
series of different specifications, gjving users more choices;
9. Defrosting: The electric defrosting Is adopted in the standard manner, and the stainless steel heating tubes are
distributed in the coil fins and the inner water tray, which can bring about desirable defrosting effect;
10. The lP65 waterproof junction box are used in fan and heating tube, with better waterproofing, which can lead to high
reliability;
11.It is subjected to strict pressure test at the pressure of 23bar;
