Luogo di origine:
Cina
Marca:
Kaideli
Certificazione:
CE,ISO9001-2008
Numero di modello:
KUSL/KUSD/KUSJ

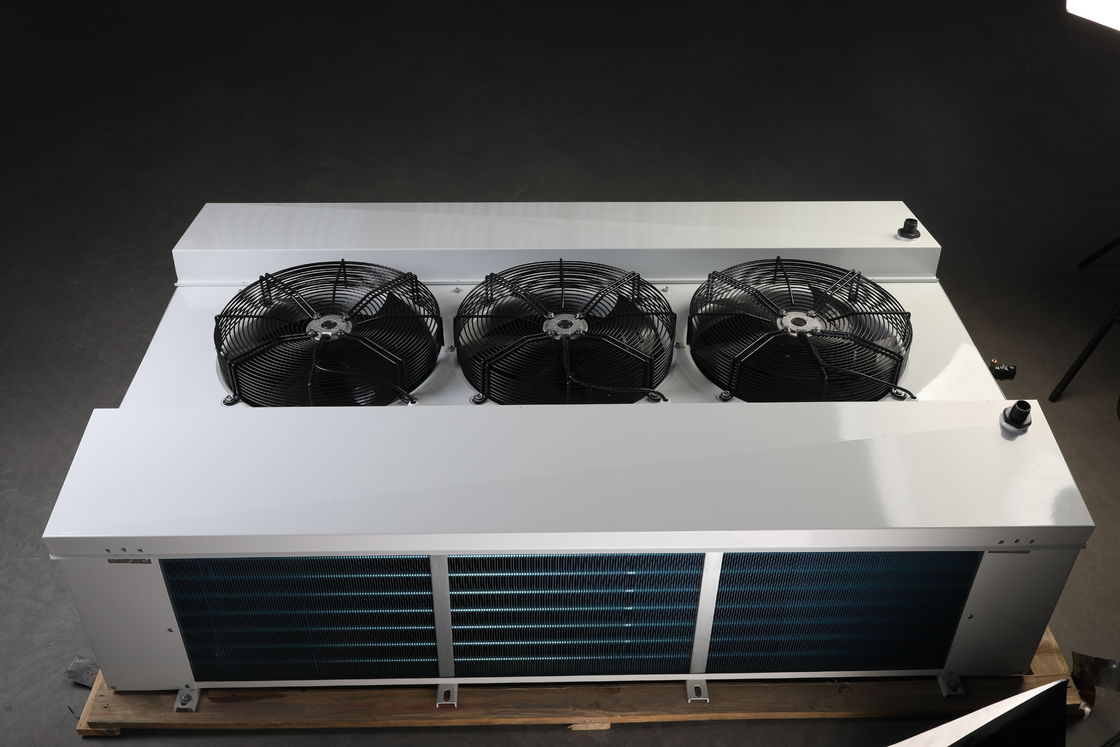

Product name: Best Price Refrigeration Cold Room Evaporator/Double Side Blowing Air Cooler
1.Evaporator parts pictures
All the parts copper,fan, fin and outside we choose famous brand,also can customize:
2.Specification
Nomination:KUDL016-W2C
K(Kaideli)U(unit cooler)S(double blow ceiling type)L/D/J(high/medium/low temp.)020(area of cooling surface)
-E(electric defrost)2/3/4(fan quantity)C(design type)
| SL-High temperature type (cold room temperature 12℃~-2℃)fin space: 4.5mm | |||||||||||
| Model | Capacity | Area | Qty | Fanφ | AirFlow | Press | AirShot | Power | Defrost | Drip pan | Volt |
| (kW) | (m2) | (set) | (mm) | (m2/h) | (pa) | (m) | (W) | coil(kW/L) | (kW) | (V) | |
| KUSL020-E1C | 4.1 | 20 | 1 | 400 | 4008 | 90 | 2×8 | 180 | 2×0.6 | 2×0.6 | 220 |
| KUSL040-E1C | 8.2 | 40 | 1 | 450 | 5180 | 90 | 2×9 | 250 | 2×0.6 | 2×0.6 | 220 |
| KUSL060-E2C | 12.3 | 60 | 2 | 400 | 2×4008 | 90 | 2×8 | 2×180 | 2×1.0 | 2×1.0 | 220 |
| KUSL080-E2C | 16.4 | 80 | 2 | 450 | 2×5180 | 90 | 2×9 | 2×250 | 2×1.0 | 2×1.0 | 220 |
| KUSL105-E2C | 21.5 | 100 | 2 | 450 | 2×5180 | 90 | 2×9 | 2×250 | 4×1.0 | 2×1.0 | 220 |
| KUSL135-E3C | 27.6 | 135 | 3 | 450 | 3×5180 | 90 | 2×9 | 3×250 | 4×1.2 | 2×1.2 | 220 |
| KUSL185-E4C | 37.6 | 185 | 4 | 450 | 2×5180 | 90 | 2×9 | 4×250 | 4×1.8 | 2×1.8 | 220 |
| KUSL210-E4C | 42.7 | 210 | 4 | 450 | 2×5180 | 90 | 2×9 | 4×250 | 4×2.0 | 4×2.0 | 220 |
| SD-Medium temperature type (cold room temperature -2℃~-10℃)fin space: 6.0mm | |||||||||||
| Model | Capacity | Area | Qty | Fanφ | AirFlow | Press | AirShot | Power | Defrost | Drip pan | Volt |
| (kW) | (m2) | (set) | (mm) | (m2/h) | (pa) | (m) | (W) | coil(kW/L) | (kW) | (V) | |
| KUSD015-E1C | 2.8 | 15 | 1 | 400 | 4008 | 90 | 2×9 | 180 | 2×0.6 | 2×0.6 | 220 |
| KUSD030-E1C | 5.7 | 30 | 1 | 450 | 5180 | 90 | 2×10 | 250 | 4×0.6 | 2×0.6 | 220 |
| KUSD045-E2C | 8.4 | 45 | 2 | 400 | 2×4008 | 90 | 2×9 | 2×180 | 2×1.0 | 2×1.0 | 220 |
| KUSD060-E2C | 11.4 | 60 | 2 | 450 | 2×5180 | 90 | 2×10 | 2×250 | 4×1.0 | 2×1.0 | 220 |
| KUSD080-E2C | 15.2 | 85 | 2 | 450 | 2×5180 | 90 | 2×10 | 2×250 | 6×1.0 | 2×1.0 | 220 |
| KUSD100-E3C | 18.7 | 100 | 3 | 450 | 3×5180 | 90 | 2×10 | 3×250 | 6×1.2 | 2×1.2 | 220 |
| KUSD140-E4C | 26.2 | 140 | 4 | 450 | 2×5180 | 90 | 2×10 | 4×250 | 6×1.8 | 2×1.8 | 220 |
| KUSD160-E4C | 30 | 160 | 4 | 450 | 2×5180 | 90 | 2×10 | 4×250 | 6×2.0 | 4×2.0 | 220 |
| SJ- Low temperature type (cold room temperature -10℃~-31℃)fin space: 9.0mm | |||||||||||
| Model | Capacity | Area | Qty | Fanφ | AirFlow | Press | AirShot | Power | Defrost | Drip pan | Volt |
| (kW) | (m2) | (set) | (mm) | (m2/h) | (pa) | (m) | (W) | coil(kW/L) | (kW) | (V) | |
| KUSJ010-E1C | 1.5 | 10 | 1 | 400 | 4008 | 90 | 2×9 | 180 | 2×0.6 | 2×0.6 | 220 |
| KUSJ020-E1C | 3.3 | 20 | 1 | 450 | 5180 | 90 | 2×10 | 250 | 4×0.6 | 2×0.6 | 220 |
| KUSJ030-E2C | 4.8 | 30 | 2 | 400 | 2×4008 | 90 | 2×9 | 2×180 | 2×1.0 | 2×1.0 | 220 |
| KUSJ040-E2C | 7.1 | 45 | 2 | 450 | 2×5180 | 90 | 2×10 | 2×250 | 4×1.0 | 2×1.0 | 220 |
| KUSJ055-E2C | 8.9 | 55 | 2 | 450 | 2×5180 | 90 | 2×10 | 2×250 | 6×1.0 | 2×1.0 | 220 |
| KUSJ070-E3C | 11.5 | 70 | 3 | 450 | 3×5180 | 90 | 2×10 | 3×250 | 6×1.2 | 2×1.2 | 220 |
| KUSJ100-E4C | 17.1 | 100 | 4 | 450 | 2×5180 | 90 | 2×10 | 4×250 | 6×1.8 | 2×1.8 | 220 |
| KUSJ115-E4C | 19.6 | 115 | 4 | 450 | 2×5180 | 90 | 2×10 | 4×250 | 6×2.0 | 4×2.0 | 220 |
How to select correct evaparator:
Generally,Choose evaporator capacity=cold room cooling capacity *1.15
1.When the cold room temperature is around 0℃, select 4.5mm as fin space.
Evaporator choose=1.0*Q0
2.When the cold room temperature is around -18℃, select 6mm as fin space.
Evaparator choose=1.1*Q0
3.When the cold room temperature is around -25℃, select 9mm as fin space.
Evaparator choose=1.27*Q0
Remarks: The water defrost and hot gas defrost type are also optional.
Customized specification leave me message for details.
3.Want to know other related products?-click picture for detailed specification
4.How to assure quality? Any procedure?
Our QC department will make sure of each step
5.Do you factory?
We are factory established in 1995 and through 28years developed,welcomed by all our customers.Because of all your support now we are a big family of more than 300 people,covered 50000 square meters,and your supporting is very important of continuing our dream of eating fresh and healthy food.
6.Do you attend exhibition?
Each year we will attend domestic national and foreign exhibition,also we will support our agent to attend exhibition,welcome to join us.
7.Why choose us
Professional:28 years focus one thing-refrigeration equipments
Material we use sufficient
Certificate:CE, ISO, and cetiifcate of producing special pressure equipment
8.Projects reference?
9.FAQ
1, Q:Where is your factory address?
A:We are factory and located in refrigeration equipment producing base Shengzhou,Zhejiang province.
2, Q: What is your package?
A: Our package comply to custom require not include original wood.
3, Q:What is your MOQ?
A: Ordinary products can order from 1 set.
4, Q: Can you offer sample?
A: Yes,we can offer sample.and cost and delivery at your charge.
5, Q:I can't find products on your list?
A: Please contact me directly.
6,Q:How can i confirm your factory?
A: We have third party verified document of Bureau Veritas report,you can download in company page or leave me message to get.
