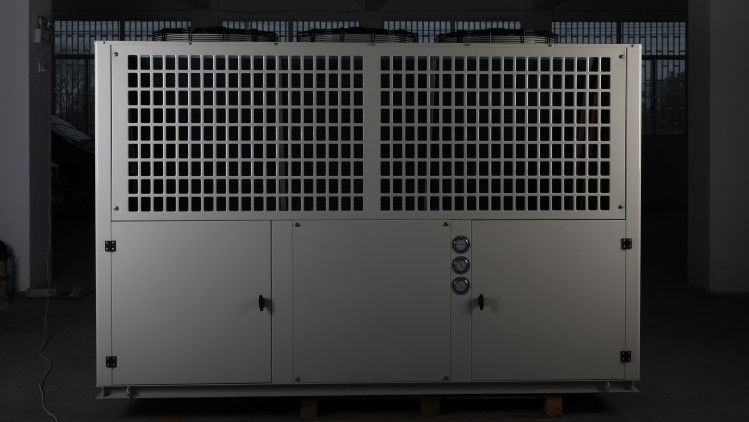

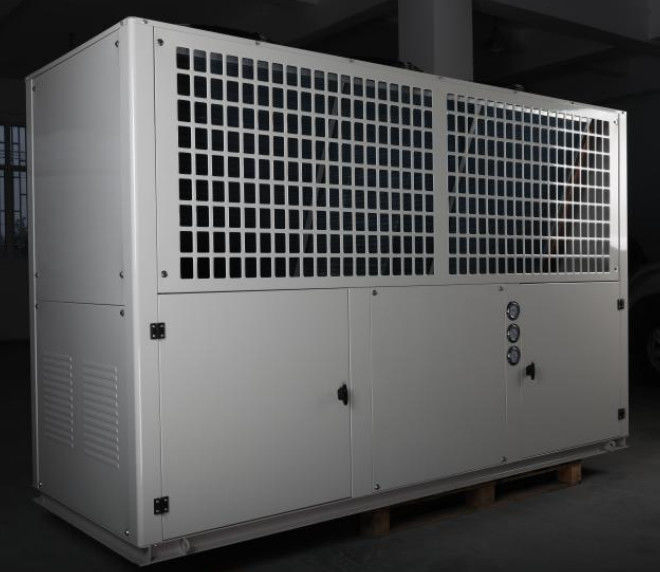

A box type condensing unit suitable for outdoor use and easy to operate, meeting the needs of refrigerants such as R404A, R507A, R448, R22, etc

Luogo di origine:

Cina

Marca:

Kaideli

Numero di modello:

Contattaci

Chiedi un preventivo

A box type condensing unit suitable for outdoor use and easy to operate, meeting the needs of refrigerants such as R404A, R507A, R448, R22, etc

Dettagli del prodotto

Certificazione:

CE, UL, ROHS, ISO9001, CCC

Tipo:

Unità di condensazione, unità di condensazione raffreddata ad aria

Temperatura:

Temperatura media e bassa temperatura, -2~5℃, -15~-35℃

Capacità:

In base alle diverse temperature impostate, varia da 5,3 a 25,3 kW

Capacità di raffreddamento:

In base alle diverse temperature impostate si va da 10,6 a 59,8 kW

Potenza del cavallo:

Da 8HP a 30HP

Refrigerante:

R22, R404A, R507A

Voltaggio:

380 V/trifase/50 Hz o 220 V/monofase/50 Hz

Compressore:

Compressore scroll Emerson

Applicazione:

Cella frigorifera, cella frigorifera, refrigerazione e industria chimica, cella frigorifera in minia

Servizio OEM:

SÌ

Servizio post-vendita fornito:

Nessun servizio fornito all'estero, Supporto di terze parti disponibile all'estero, Ingegner

Termini di pagamento e di spedizione

Quantità di ordine minimo

Tempi di consegna

Entro un mese

Termini di pagamento

Fob

Prodotti correlati

Contattaci

86-0575-83063696

Contatta ora

Descrizione del prodotto

TE series box-type condensing unit product overview

TE series condensing unit is equipped with Emerson scroll compressor as the main component, which is designed with double-layer and large box structure; this series of products have the following features:
1.The compressor is Emerson medium-temperature ZB series compressor and low-temperature ZFI series compressor with EVI.
2.The unit is designed for medium temperature and low temperature applications, of which the medium-temperature unit is mainly used for the cold store of -2 ~ 5 °C, and the low-temperature unit is mainly used for the cold store of -15 ~ -35 °C.
3.The enclosure is made of galvanized steel plate sprayed with powder coating in silver gray for excellent corrosion resistance, quite suitable for outdoor use; it is designed with double-layer structure, namely upper and lower, which has a large operating space and is convenient to clean the condenser and chassis; the compressor's chassis cover is connected with hinge structure, which is convenient for operation and maintenance.
4.The chassis panel is attached with honeycomb sound-insulation foam to effectively reduce the operating noise and sheet metal resonance of the unit.
5.The fan tube is designed with overall stretching large rounded high air tube, it has the characteristics of excellent air guiding effect, low noise and aesthetic appearance.
6.The condenser is designed in U-shaped structure, with fewer pipes, large air intake area and high heat exchange efficiency.
7.Fitted with double fans in design, it can effectively reduce the noise of fan, facilitate condensing fan control and improve the operation reliability of the unit;
8.It is compatible with R404A, R507A, R448, R449, R22 and other refrigerants.

Unit Configuration

Medium-temperature and high-temperature uni

Unit model
TE08M	TE09M	TE10M	TE12M	TE13M	TE15M	TE20M	TE22M	TE25M	TE30M
Scroll compressor(welded joint)	●	●	●	●	●	●	●	●	●	●
Oil heating band	●	●	●	●	●	●	●	●	●	●
Exhaust damping pipe	○	○	○	○	○	○	●	●	●	●
Oil separator	○	○	○	○	○	○	●	●	●	●
Condenser (hydrophilic aluminum foil)	●	●	●	●	●	●	●	●	●	●
External rotor fan	●	●	●	●	●	●	●	●	●	●
Reservoir	●	●	●	●	●	●	●	●	●	●
Reservoir outlet shut-off valve	●	●	●	●	●	●	●	●	●	●
Dry filter	●	●	●	●	●	●	●	●	●	●
Sight glasses	●	●	●	●	●	●	●	●	●	●
Gas-liquid separator	○	○	○	○	○	○	○	○	○	○
High/low-pressure protection	●	●	●	●	●	●	●	●	●	●
High/low-pressure gauge	●	●	●	●	●	●	●	●	●	●
Refrigerant solenoid valve	○	○	○	○	○	○	○	○	○	○
High pressure control (fan control)	○	○	○	○	○	○	○	○	○	○
Low pressure control (vent shutdown)	○	○	○	○	○	○	○	○	○	○

○

Note:●Standard components,○ Optional component,/Not available

Low-temperature unit

Components	Unit model
Components	TE08LY	TE10LY	TE12LY	TE15LY	TE18LY	TE20LY	TE25LY	TE30LY
Scroll compressor (EVl)	●	●	●	●	●	●	●	●
Oil heating band	●	●	●	●	●	●	●	●
Exhaust damping pipe	○	○	○	○	○	○	●	●
Gas-liquid sepatator	○	○	○	○	○	○	●	●
Condenser (hydrophilic aluminum foil)	●	●	●	●	●	●	●	●
External rotor fan	●	●	●	●	●	●	●	●
Reservoir	●	●	●	●	●	●	●	●
Reservoir outlet shut-off valve	●	●	●	●	●	●	●	●
Dry filter	●	●	●	●	●	●	●	●
Sight glasses	●	●	●	●	●	●	●	●
Gas-liquid separator	○	○	○	○	○	○	○	○
High/low-pressure protection	●	●	●	●	●	●	●	●
High/low-pressure gauge	●	●	●	●	●	●	●	●
(Subcooling) solenoid valve	●	●	●	●	●	●	●	●
(Subcooling) expansion valve	●	●	●	●	●	●	●	●
Subcooling exchange plate	●	●	●	●	●	●	●	●
Refrigerant solenoid valve	○	○	○	○	○	○	○	○
High pressure control (fan control)	○	○	○	○	○	○	○	○
Low pressure control (vent shutdown)	○	○	○	○	○	○	○	○

Note:●Standard components,○ Optional component,/Not available
